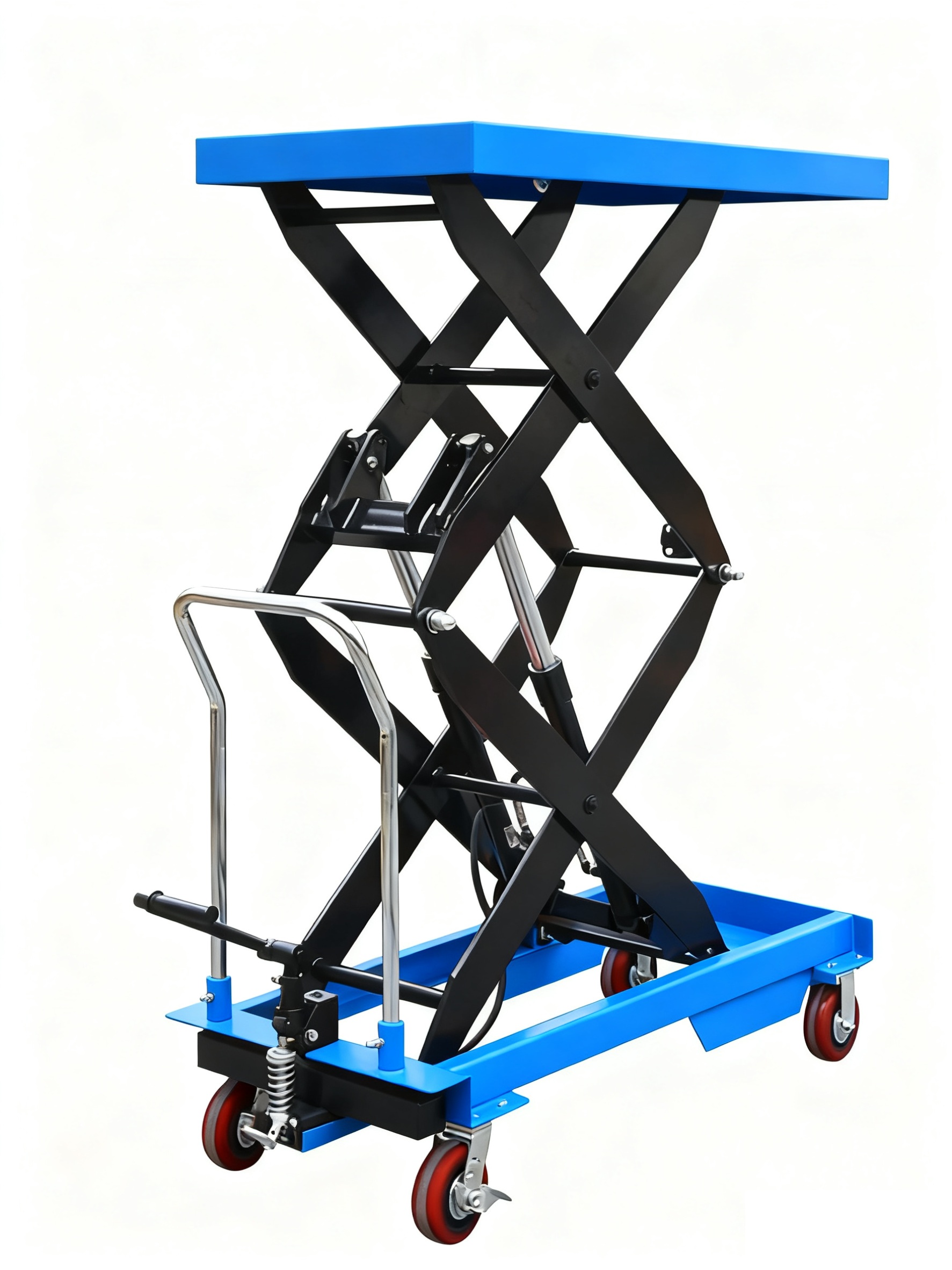

Double scissor manual platform truck
Product Features:
Integral pump, double scissors platform truck.
Unified Pump, Double Scissor Lift Tables.
Applicable working environment:
Can be used for warehouse shelves, logistics centers and other scenes of goods handling; Factory production lines, workshops, used for raw materials, semi-finished products and finished products handling;
Supermarkets, shopping malls and other retail places of goods sorting and sheltering operations, support the whole box handling and reduce the loss of goods
Integral pump, double scissors platform truck.
Unified Pump, Double Scissor Lift Tables.
Applicable working environment:
Can be used for warehouse shelves, logistics centers and other scenes of goods handling; Factory production lines, workshops, used for raw materials, semi-finished products and finished products handling;
Supermarkets, shopping malls and other retail places of goods sorting and sheltering operations, support the whole box handling and reduce the loss of goods
|
Model/Model |
Unit |
HEPTS150 |
HEPTS350A |
HEPTS350A |
HEPTDS350A |
|
Rated load / Load Capacity |
kg |
150 |
350 |
350 |
350 |
|
minimum height / Min. Height |
mm |
302 |
360 |
360 |
360 |
|
maximum height / Max. Height |
mm |
1260 |
1300 |
1500 |
1580 |
|
Table size / Table Dimension |
mm |
700*450*35 |
905*500*50 |
905*500*50 |
900*700*50 |
|
wheel diameter / Dia.of the wheel |
mm |
Φ100 |
Φ125 |
Φ125 |
Φ125 |
|
self-weight / Net Weight |
kg |
51 |
99 |
99 |
108 |
|
Outer packing size / Packing Dimensions |
mm |
820*470*325 |
1010*520*380 |
1010*520*380 |
1010*720*380 |
|
666.66cm container packing number/TEU QTY |
PCS |
144 |
100 |
100 |
70 |
