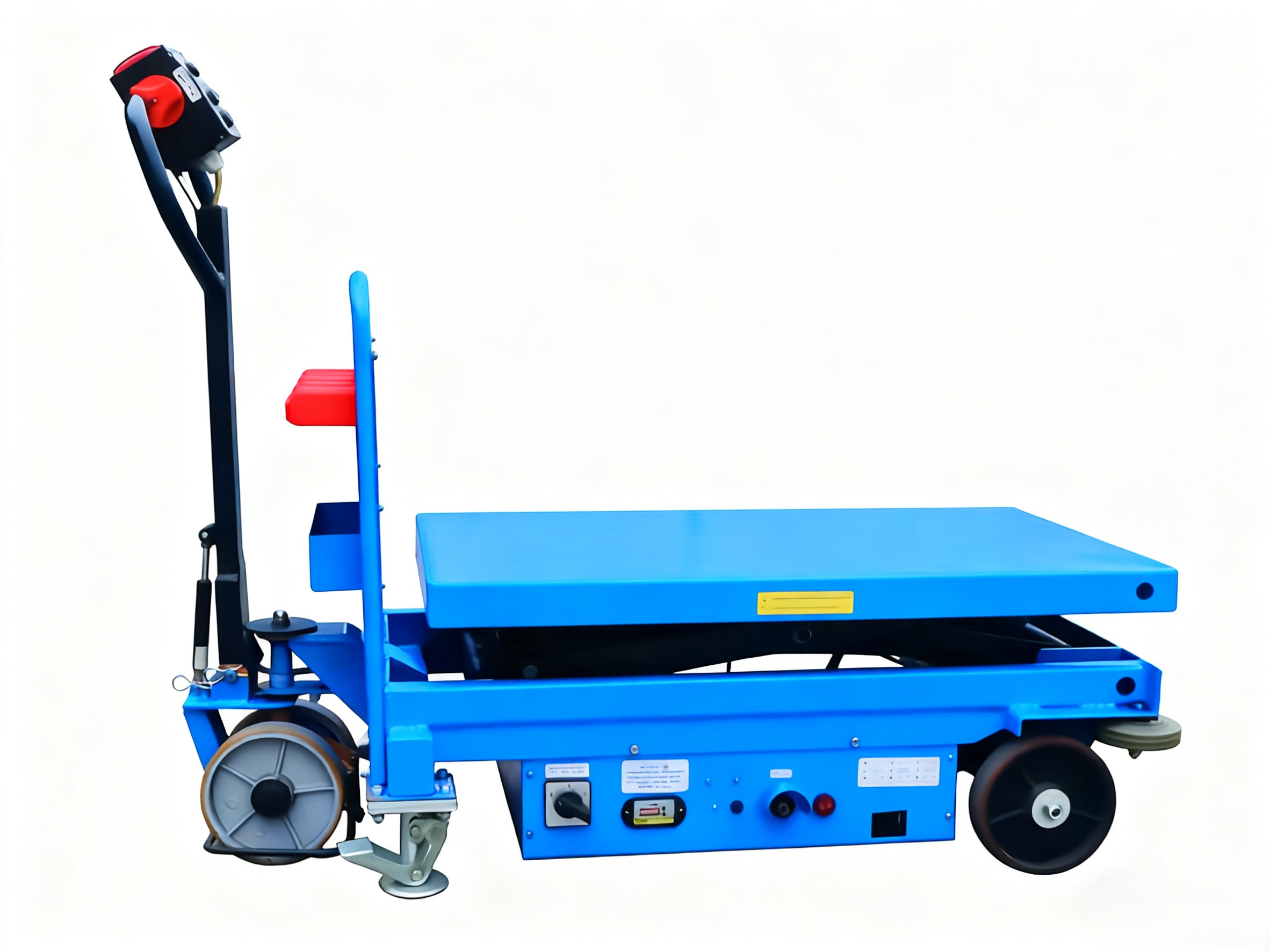

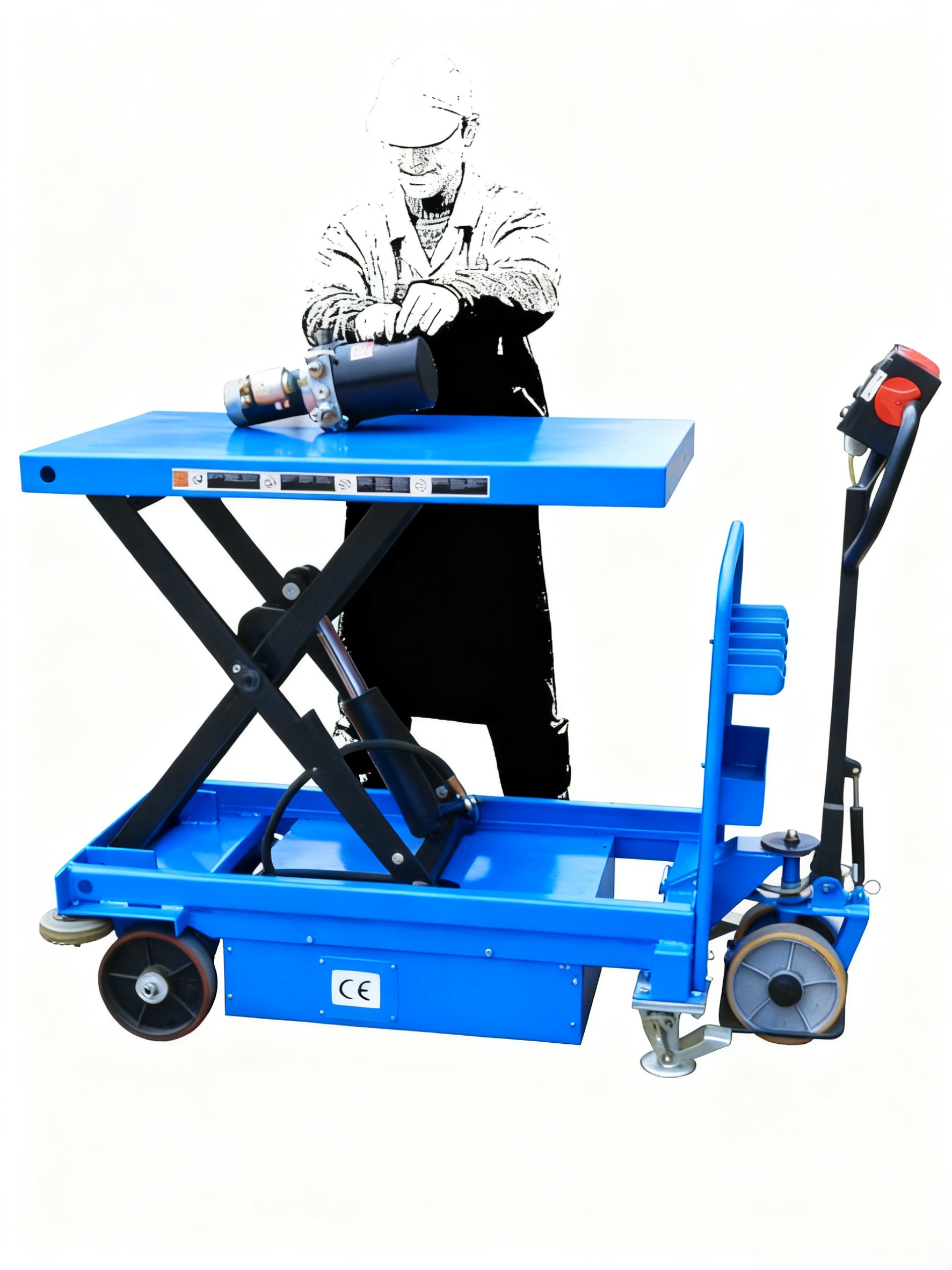

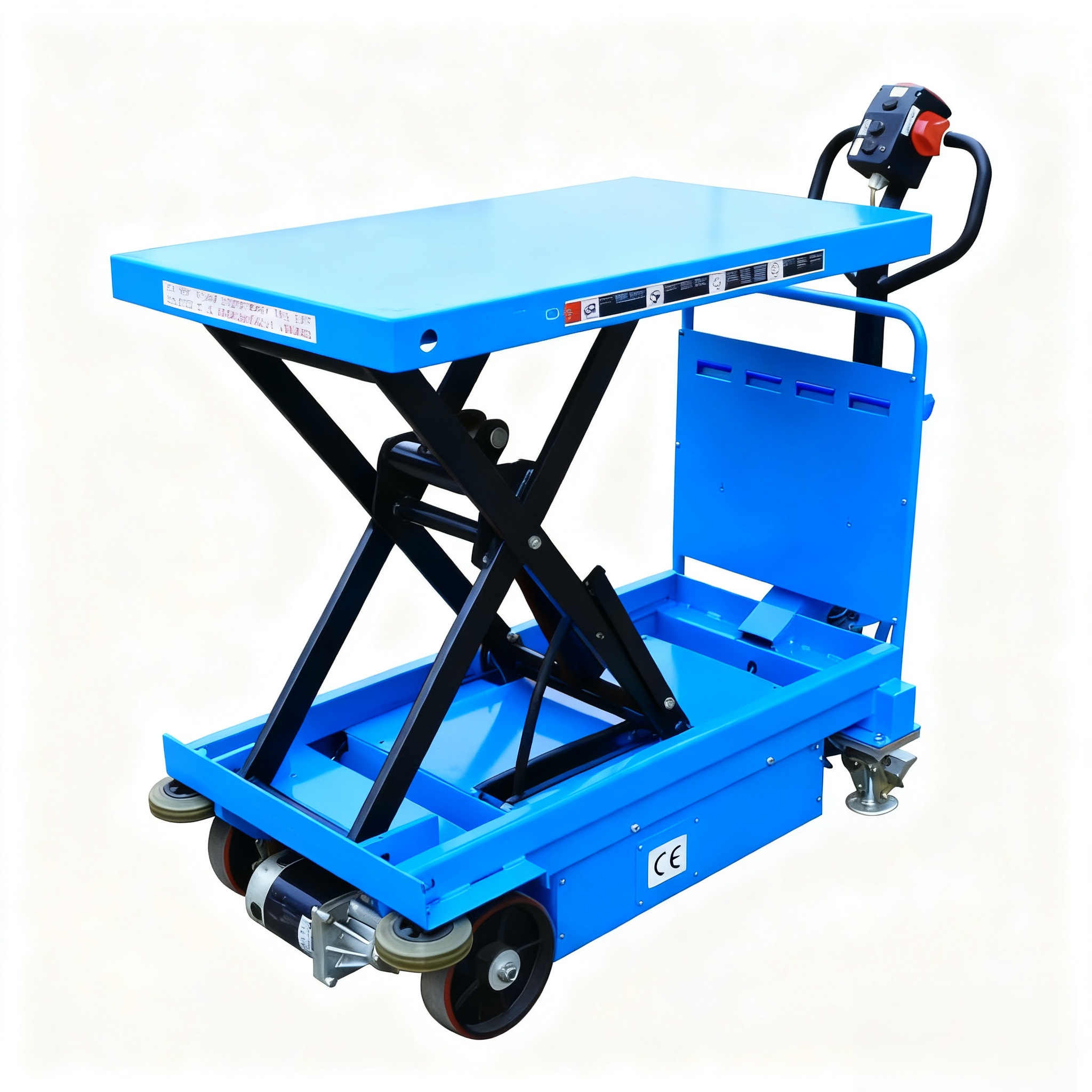

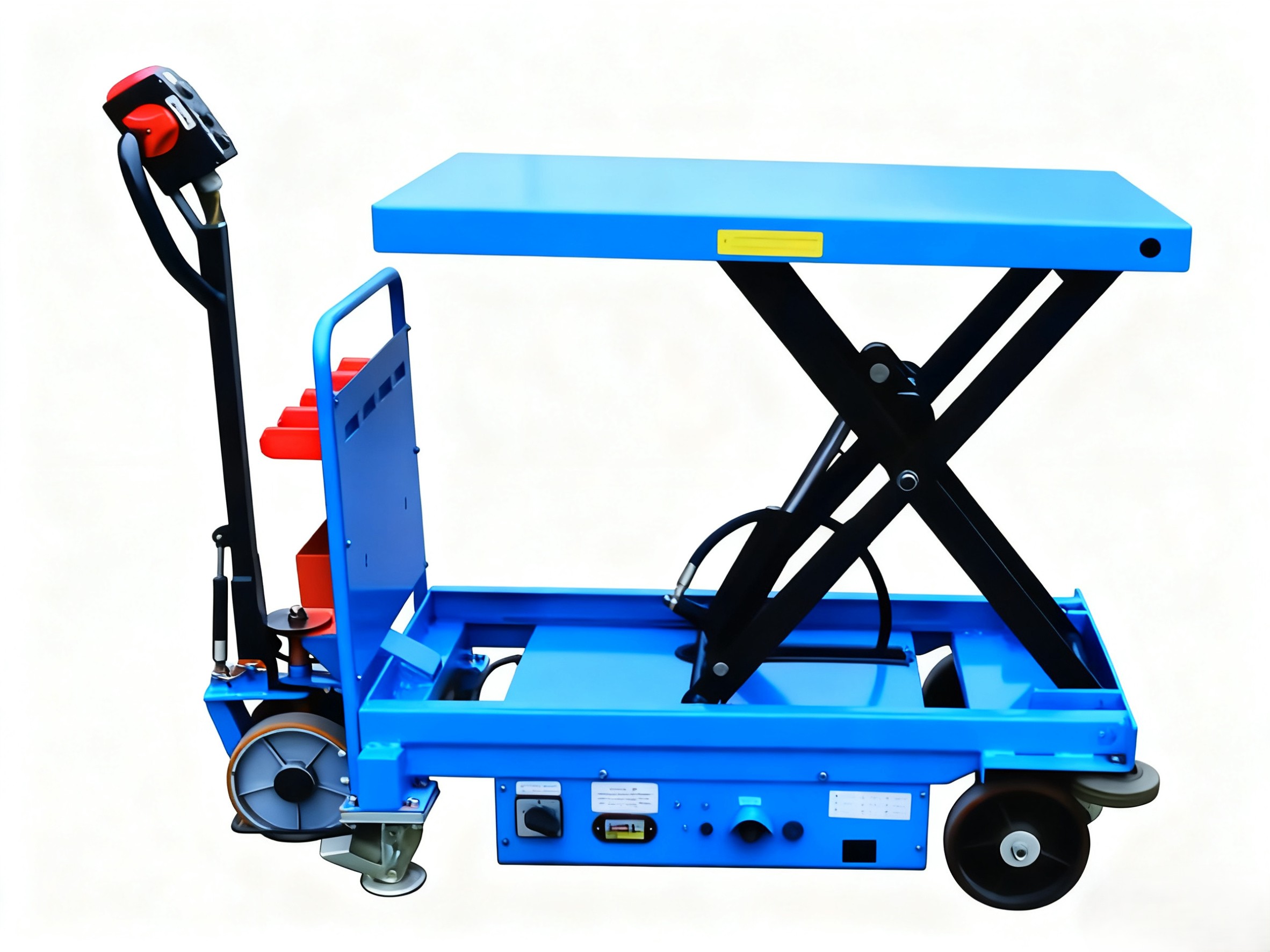

Electric mobile platform vehicle
Product Features:
Electric lifting, electric walking; using imported seals; using anti-pinch scissors design to prevent pinching, with overload protection function, more reliable and safer
Reference standard:
Complies with the European EN1570 standard
Electric lifting, electric walking; using imported seals; using anti-pinch scissors design to prevent pinching, with overload protection function, more reliable and safer
Reference standard:
Complies with the European EN1570 standard
|
Model |
Unit |
HEMR-D50 |
HEMR-W50 |
HEMR-D80 |
HEMR-W80 |
|
type |
single shear |
double shear |
single shear |
double shear |
|
|
Rated load |
(Kg) |
500 |
500 |
800 |
800 |
|
Dimensions |
L(mm) |
1020 |
1020 |
1020 |
1020 |
|
W(mm) |
610 |
610 |
610 |
610 |
|
|
H1(mm) |
460 |
465 |
460 |
520 |
|
|
H2(mm) |
990 |
1700 |
1050 |
1850 |
|
|
H4(mm) |
1165 |
1165 |
1165 |
1165 |
|
|
L2(mm) |
1380 |
1380 |
1380 |
1380 |
|
|
W1(mm) |
667 |
667 |
667 |
667 |
|
|
Drive Wheel |
(W) |
500 |
500 |
500 |
500 |
|
pump station |
(W) |
800 |
800 |
800 |
800 |
|
net weight |
(kg) |
203 |
250 |
241 |
293 |
