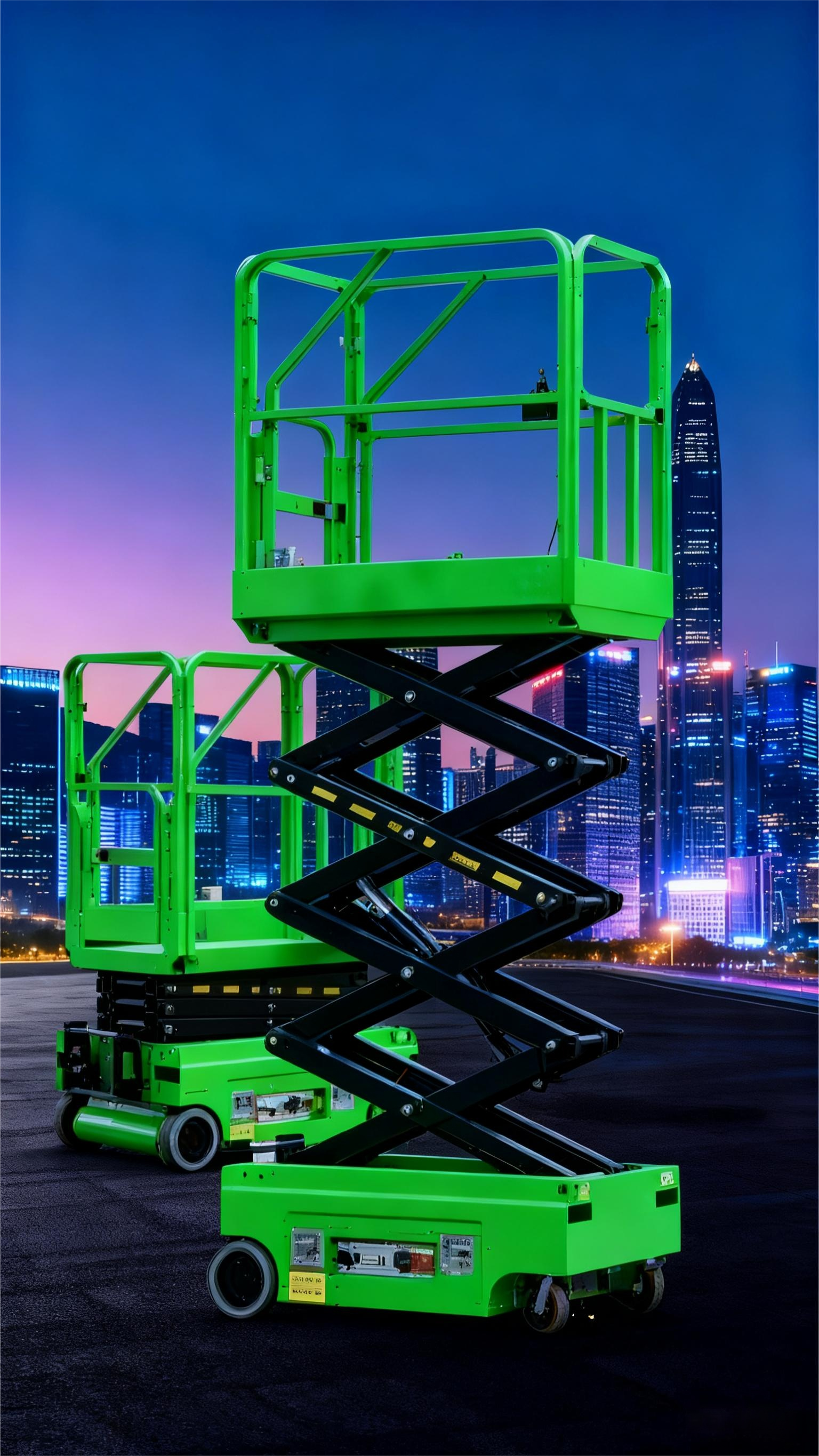

Small all-electric scissors aerial work platform

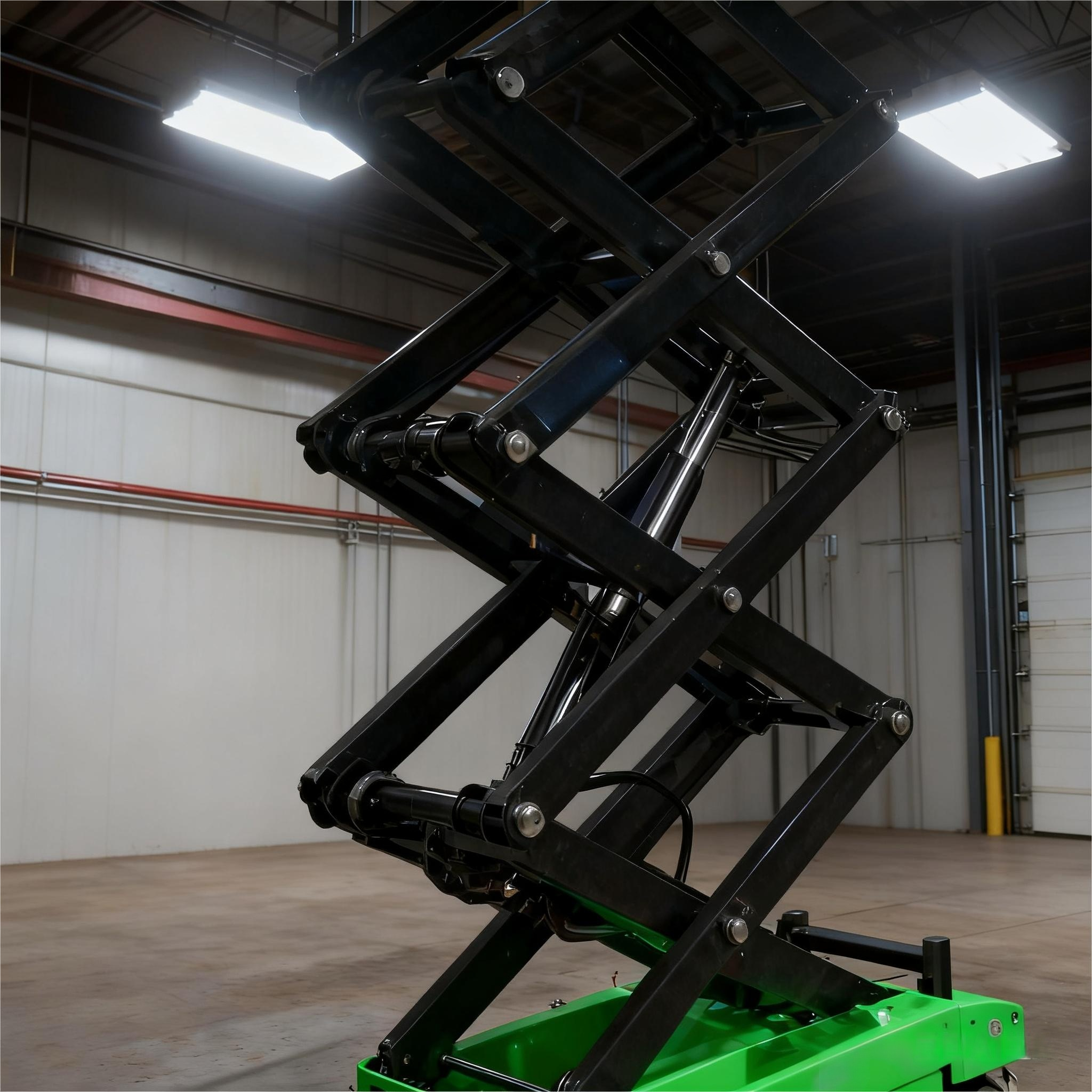

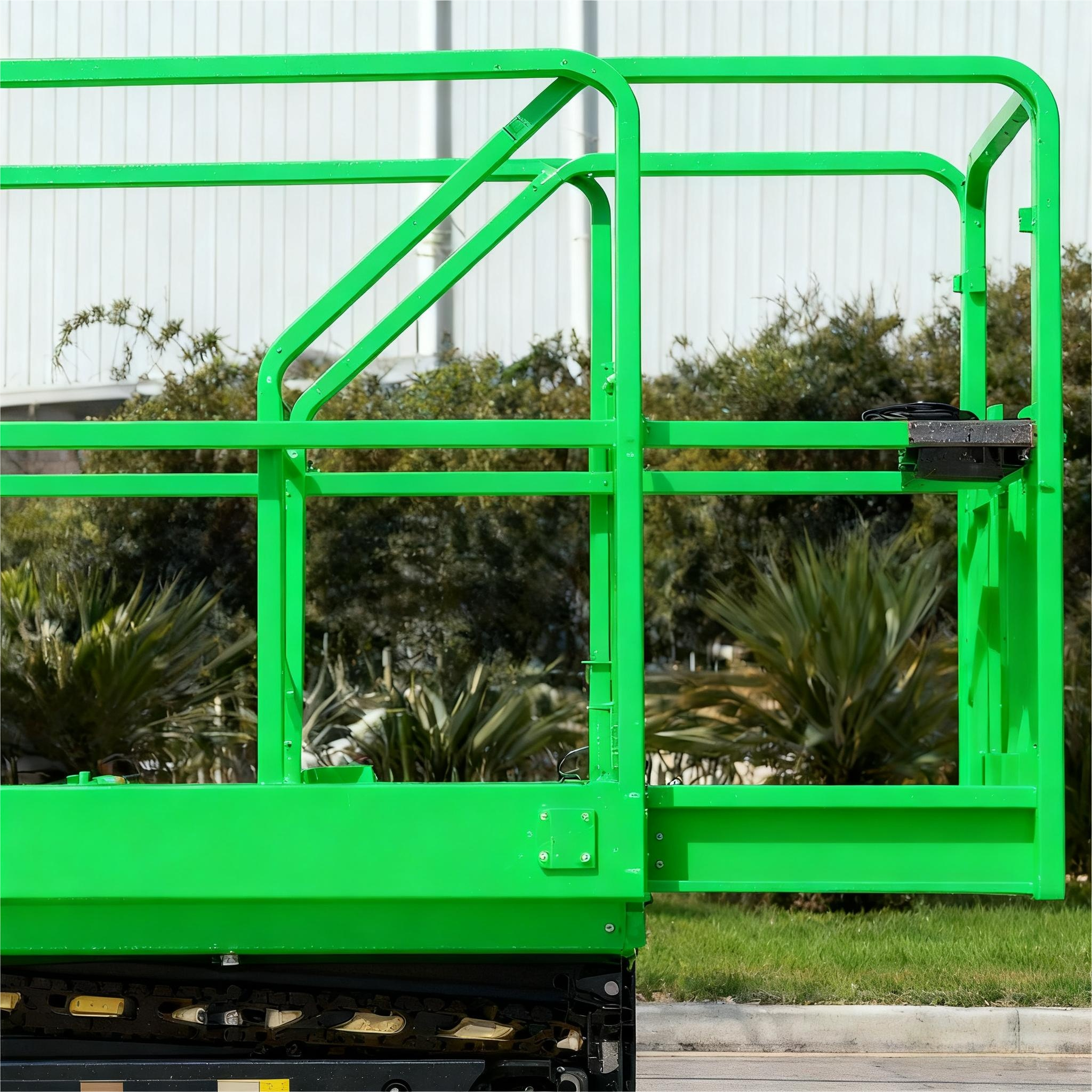

Small all-electric platform, can walk independently, with portable drive box, users can flexibly control the direction and speed; The tire material is solid seamless tire, which greatly reduces the impact of friction. It has standard electrical control system, stable scissor structure extension worktable, high-strength oil cylinder and other parts.
|
Project |
Unit |
HESJY0.3-1.8Z |
HESJY0.3-3Z |
HESJY0.3-3.9Z |
|
platform |
mm |
1800 |
3000 |
3900 |
|
platform |
mm |
640 |
720 |
800 |
|
Working platform size |
mm |
1150*600 |
1150*600 |
1150*600 |
|
Rated load of platform |
kg |
300 |
300 |
300 |
|
Platform moving part load |
kg |
100 |
100 |
100 |
|
Outward dimension of platform |
mm |
550 |
550 |
550 |
|
rise time |
S |
10 |
33 |
53 |
|
descent time |
S |
7 |
30 |
50 |
|
Minimum ground clearance |
mm |
60 |
60 |
60 |
|
Battery |
v/Ah |
2*12/80 |
2*12/80 |
2*12/80 |
|
Lifting motor |
v/kw |
12/0.8 |
12/0.8 |
12/0.8 |
|
Travel motor |
v/kw |
2*24/0.4 |
2*24/0.4 |
2*24/0.4 |
|
Driving speed |
km/h |
4 |
4 |
4 |
|
charger |
v/A |
24/18A |
24/18A |
24/18A |
|
Drive Wheel |
mm |
230*80 |
230*80 |
230*80 |
|
front wheel |
in |
6 |
6 |
6 |
|
Overall length |
mm |
1160 |
1160 |
1160 |
|
Overall width |
mm |
760 |
760 |
760 |
|
Overall machine height |
mm |
1640 |
1720 |
1800 |
|
Overall machine height(Folding) |
mm |
1340 |
1420 |
1500 |
|
Overall weight |
kg |
600 |
630 |
660 |
